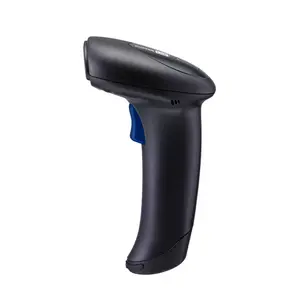

1564AH , Standard Range 2D Imager (SE4107) , White (Antimicrobial Series) , Scanner Only

$575.00

CipherLab 1564AH General Purpose, Part Number: A1564AR1S0001

- +
SKU: A1564AR1S0001 Categories: , , Brand:

Additional information

Overview

Bringing retail productivity and performance up to speed, the 1500 series of scanners offers powerful reliability with efficiency. Ideal for a wide range of applications from retail to healthcare and post offices, the 1500 scanner is not only advanced, but its ergonomic design also provides extreme durability – day in, day out. Industry Use: Retail Healthcare Government

Description

Bringing retail productivity and performance up to speed, the 1500 series of scanners offers powerful reliability with efficiency. Ideal for a wide range of applications from retail to healthcare and post offices, the 1500 scanner is not only advanced, but its ergonomic design also provides extreme durability – day in, day out.

Industry Use:

  • Retail
  • Healthcare
  • Government

Specifications

  • Resolution: 3 mil | 4 mil
  • Standard Ports: Corded | Bluetooth® Class 2 (2.4 GHz) Version 4.0+EDR | Corded | Bluetooth® Class 2 (2.4 GHz) Version 2.1+EDR
  • Color: Black
  • Minimum Order Quantity DS: 25% | 45%
  • Barcodes Supported: Codabar, Code 39, Code 93, Code 128, GS1 DataBar (RSS), Industrial 2 of 5, Interleave 2 of 5, ISBT-128, Italian and French Pharmacodes, Matrix 2 of 5, MSI, Plessey, Telepen, UPC / EAN / GS1-128, and more
  • Data Capture: Linear Imager | Laser
  • Depth Of Field: Code 39 3 mil: 6.9 to 10.7 cm / 2.7 to 4.2 in Code 39 5 mil: 6 to 17 cm / 2.4 to 6.7 in. UPCA 13 mil: 4 to 40 cm / 1.6 to 15.7 in. Long barcode 8.2 cm, 8 mil: 10 to 20 cm / 3.9 to 7.9 in. | Code 39 3 mil: 6.9 to 10.7 cm / 2.7 to 4.2 in Code 39 5 mil: 6 to 17 cm / 2.4 to 6.7 in. UPCA 13 mil: 4 to 40 cm / 1.6 to 15.7 in. | Code 39 4 mil: 1 to 4 cm / 0.4 to 1.6 in. Code 39 5 mil: 1 to 12 cm / 0.4 to 4.7 in.. UPCA 13 mil: 1.5 to 51.5 cm / 0.6 to 20.3 in.
  • Hands-free Scanning: Auto-sense and continuous modes | Continuous mode
  • Impact Resistance: 1.5 m (4.9 ft) multiple drops onto concrete | 1.2 m (3.9 ft) multiple drops onto concrete
  • Item: 1500P | 1560P | 1502 | 1562
  • Light Source: Red LED 625 nm | Red LED 618-626 nm | Visible laser diode at 650 ± 15 nm
  • Scan Rate: 520 scans/ second | 100 scans/ second
  • Scanning Angle: Pitch ± 70° Skew ± 70° | Pitch ± 65° Skew ± 50°
  • Weight: 149 g / 5.2 oz | 173 g / 6.1 oz | 149 g / 5.2 oz | 177 g / 6.2 oz
Product Line 1564AH
Manufacturer CipherLab
Weight 2.33 lbs
Dimensions 8.02 × 5.66 × 4.4 in
Depth Of Field 13 Mil Barcode
